Full-Motion Wall Mount For flat-panel TVs up to 39”
SAVSFM1
This product has been discontinued.
- Fits TVs 19" - 39"
- Swivel 28° / -28°
- Extension 7.60"
Will this work with my TV?
Enter the model number of your TV to find out.
Here are a few products that are compatible with your TV!

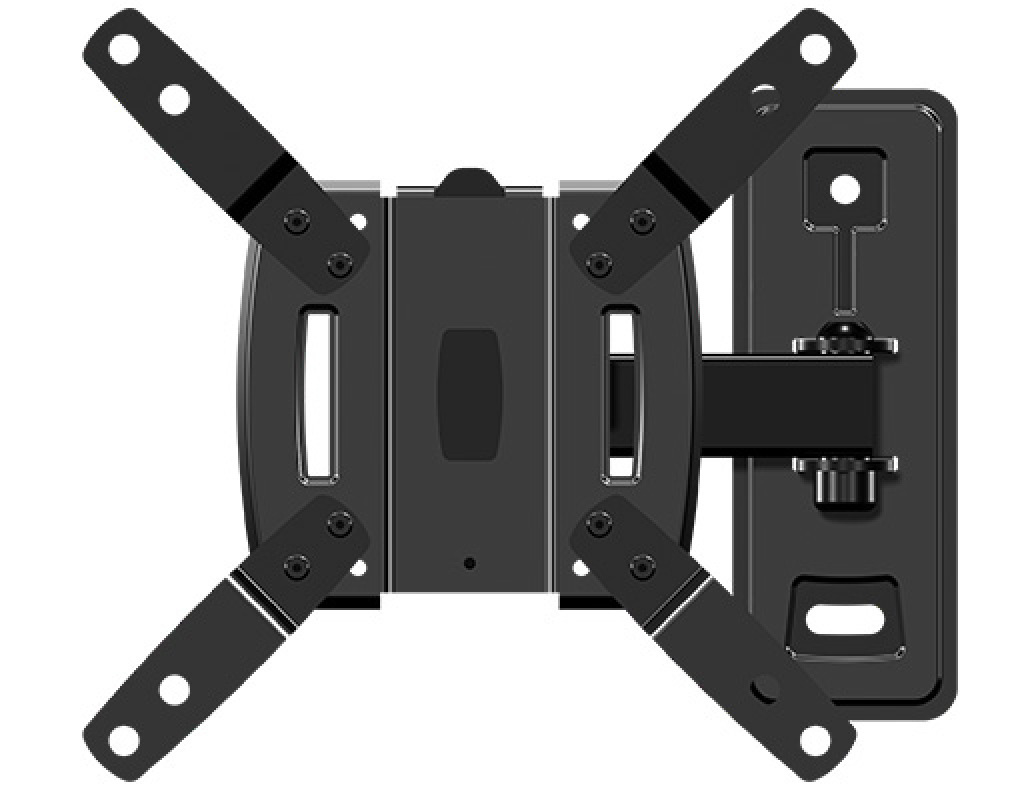

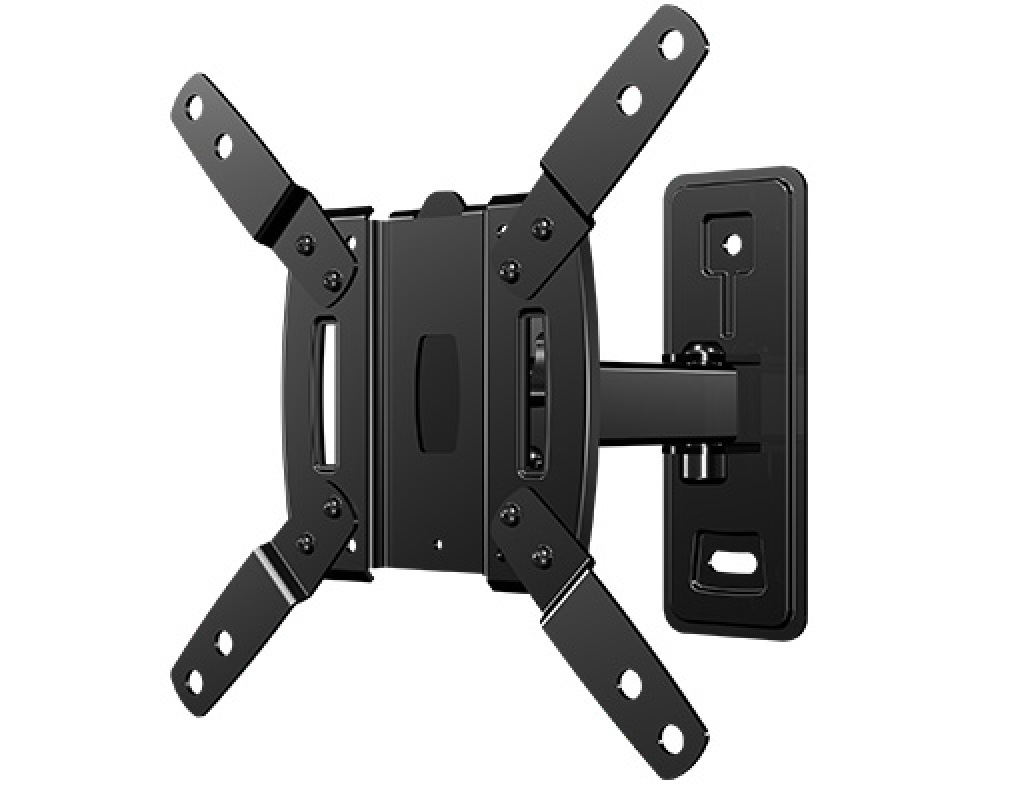

Full-Motion Wall Mount For flat-panel TVs up to 39”

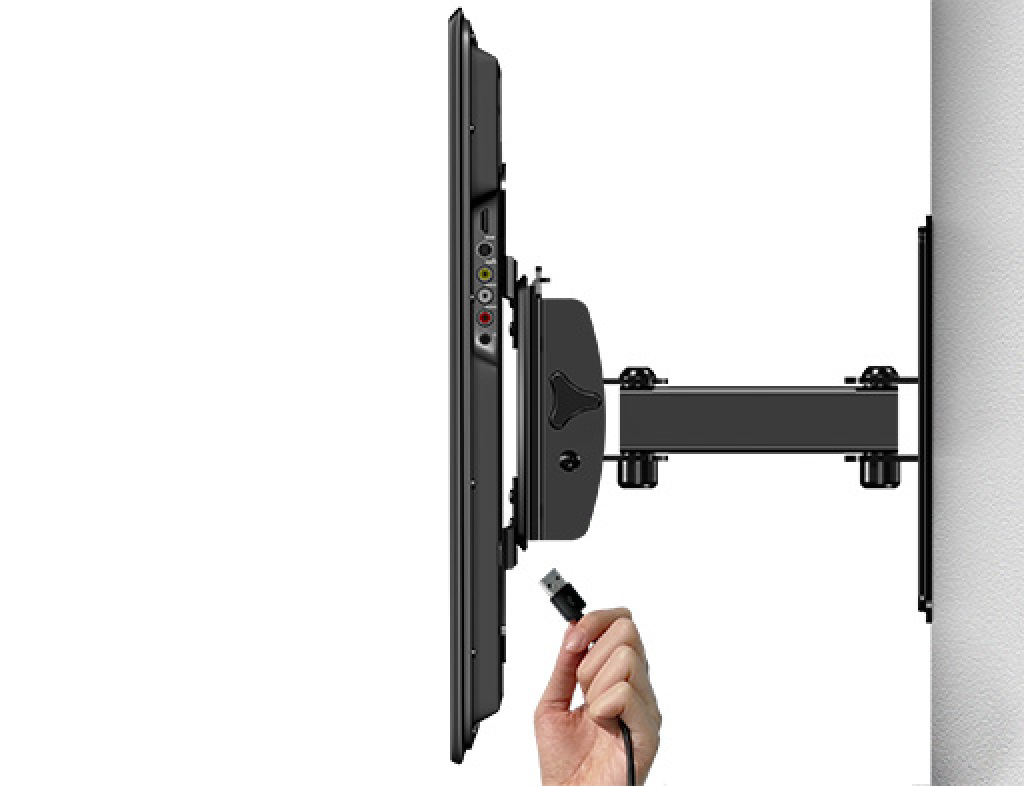

The SAVSFM1 is a full-motion wall mount for most flat-panel TVs up to 39” and 100 lbs. It features 7.59” of extension and 30º of swivel left and right for the best view from any seat in a room. The SAVSFM1 can be installed in three easy steps: Attach brackets to TV, attach wall plate to wall and hang TV on arm. Included zip ties organize cables for a clean look. Universal mounting brackets fit most TVs up to 39”.
Product Features
Tools You Will Need For Installation
-
7/32" Drill Bit
-
3/8" Masonry Bit (Concrete Installations)
-
1/2" Socket Wrench
-
Awl
-
Electric Drill
-
Hammer
-
Level
-
Pencil
-
Phillips Head Screwdriver
-
Stud Finder
-
Tape Measure
The Details
| Product Brand: | Standard AV |
|---|---|
| Model Code: | SAVSFM1 |
| UPC Code: | - Black - Discontinued |
| Product Width: | 10.26" / 26.06cm |
| Product Height: | 8.80" / 22.35cm |

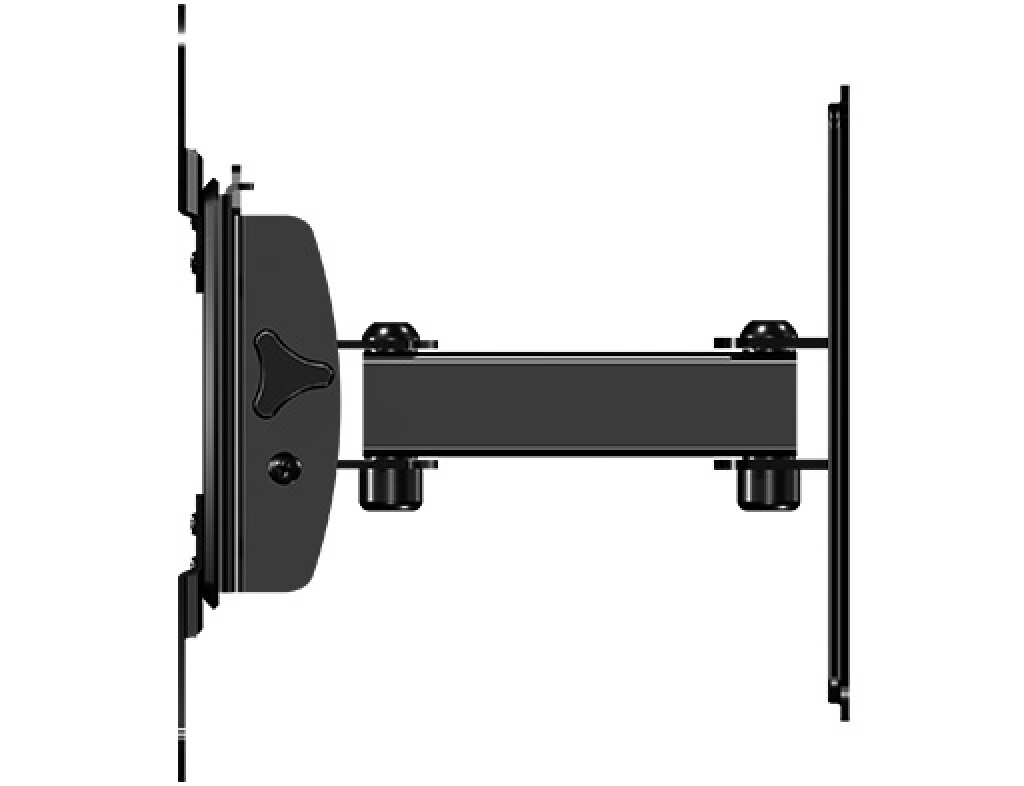

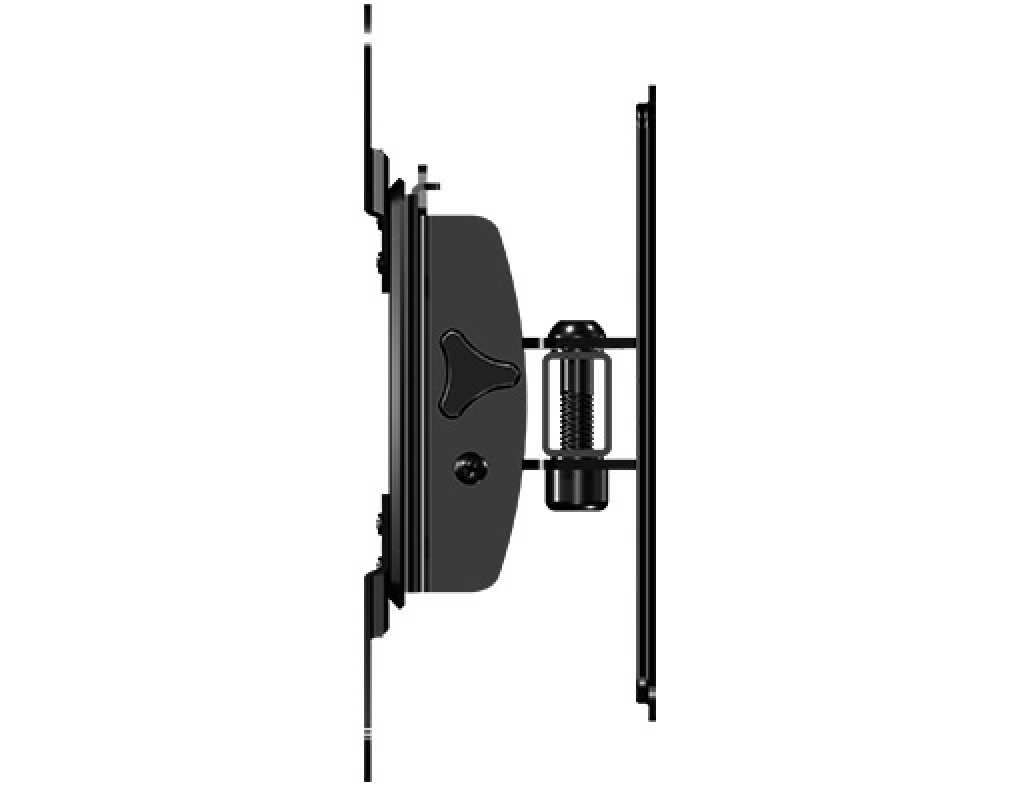

| Product Depth: | 3.31" - 7.60" / 8.41cm - 19.30cm |
| TV Size Range: | 19" - 39" / 48.26cm - 99.06cm |
|---|---|
| Maximum TV Weight: | 35lbs / 15.88kg |
| Supported VESA Patterns |
|
| Tilt: | 4° / -16° |
| Roll: | 3° / -3° |
| Swivel: | 28° / -28° |
