Full-Motion Wall Mount For 40” – 70” flat-panel TVs
SAVLFM1
This product has been discontinued.
- Fits TVs 40" - 70"
- Swivel 45° / --45°
- Extension 14.21"
Will this work with my TV?
Enter the model number of your TV to find out.
Here are a few products that are compatible with your TV!

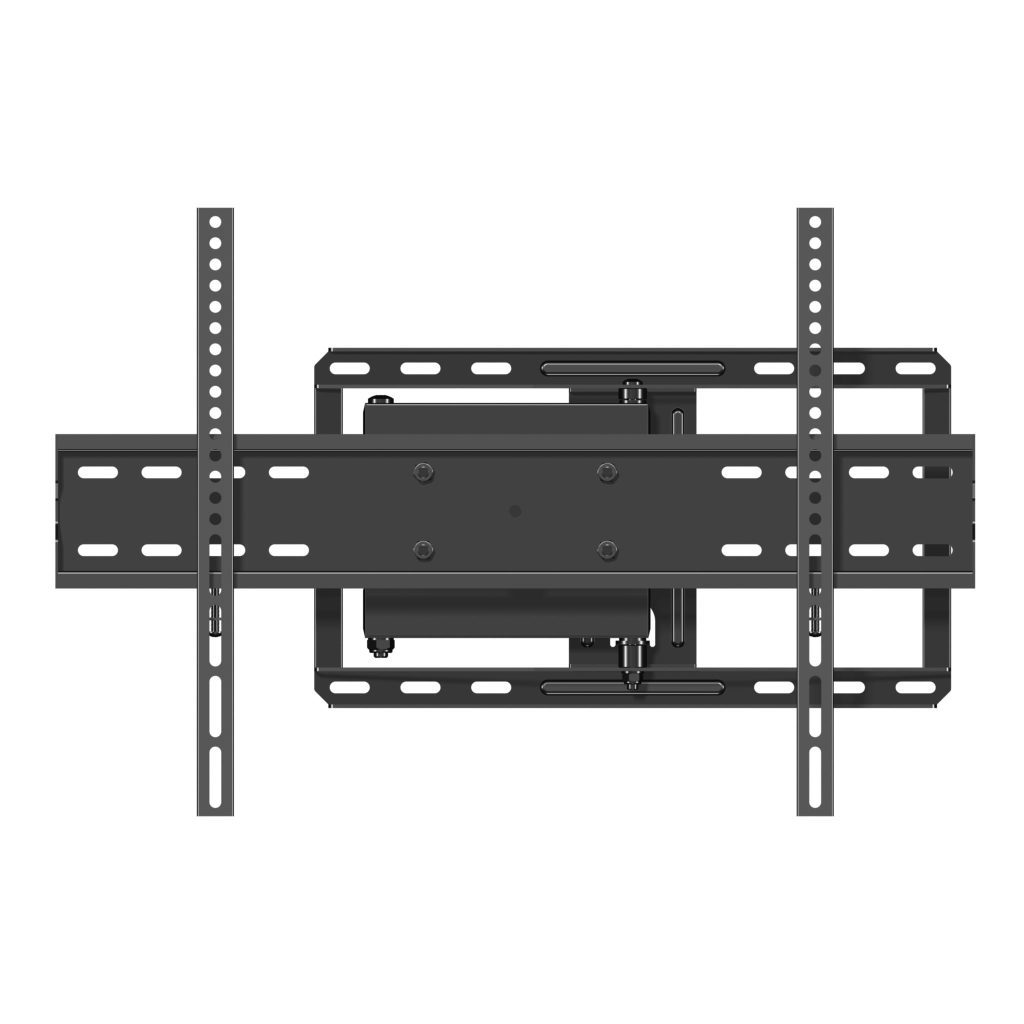

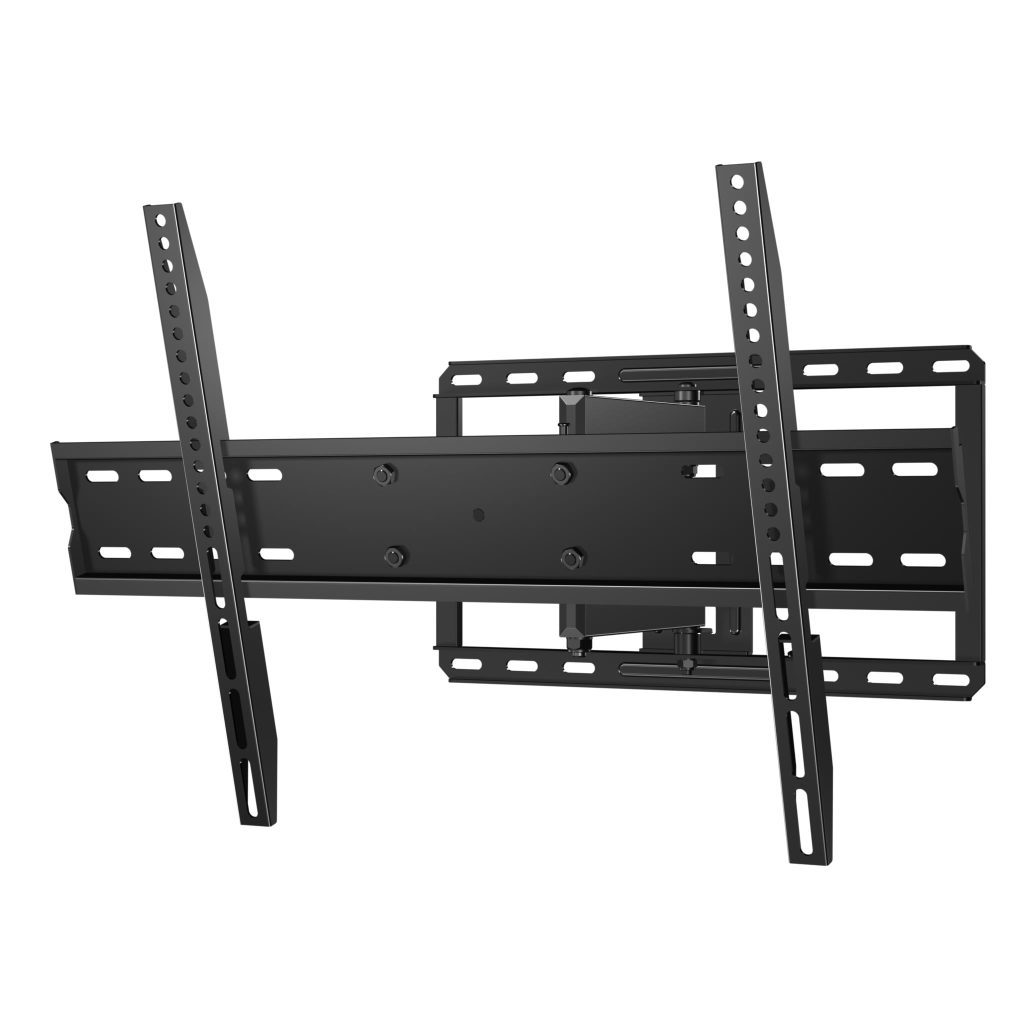

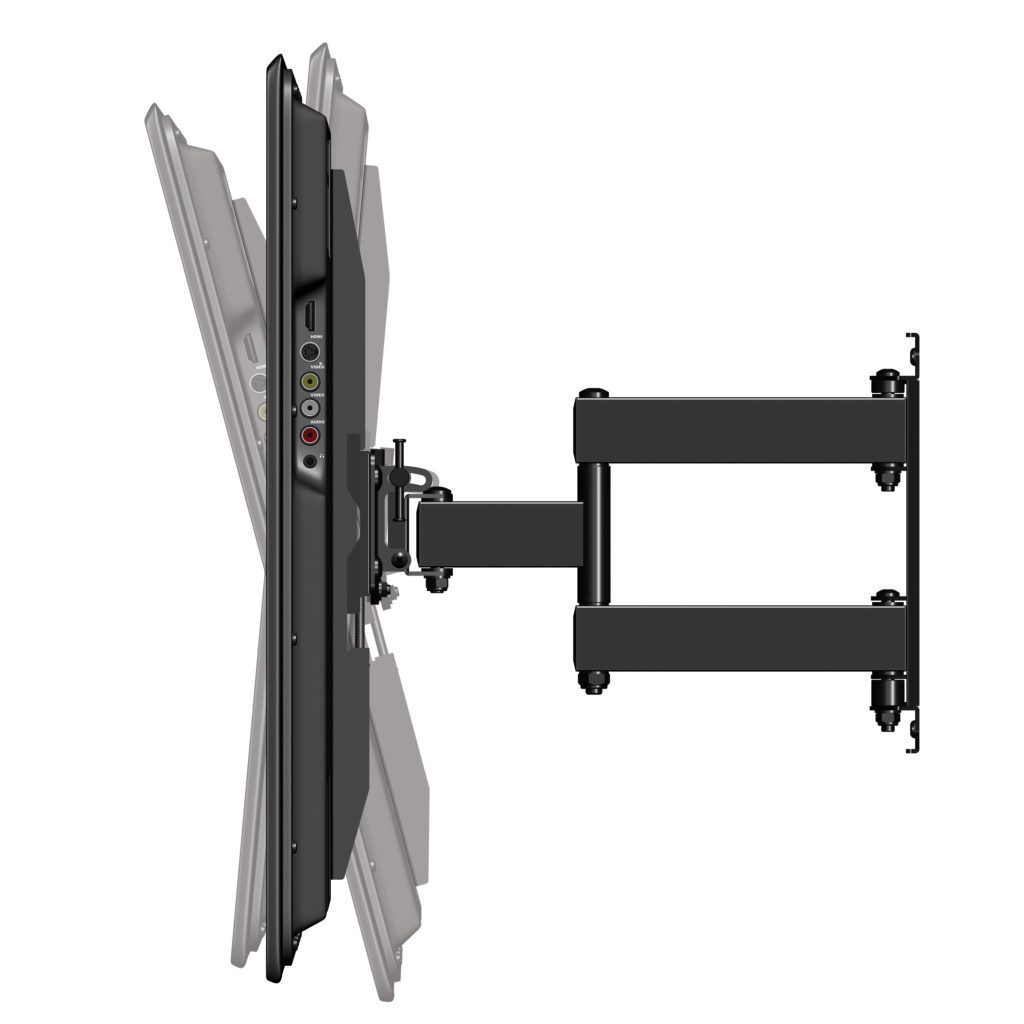

Full-Motion Wall Mount For 40” – 70” flat-panel TVs
The SAVLFM1 is a full-motion wall mount for 40” – 70” flat-panel TVs up to 80 lbs. It features 14.02” of extension and 45º of swivel left and right for the best view from any seat in a room. The SAVLFM1 can be installed in three easy steps: Attach brackets to TV, attach wall plate to wall and hang TV on arm. Post-installation adjustments ensure TV is level. Universal mounting brackets fit most 40” – 70” TVs.
Product Features
Tools You Will Need For Installation
-
7/32" Drill Bit
-
1/2" Socket Wrench
-
Awl
-
Electric Drill
-
Hammer
-
Level
-
Pencil
-
Phillips Head Screwdriver
-
Stud Finder
-
Tape Measure
The Details
| Product Brand: | Standard AV |
|---|---|
| Model Code: | SAVLFM1 |
| UPC Code: | - Black - Discontinued |
| Product Width: | 17.72" / 45.01cm |
| Product Height: | 16.93" / 43.00cm |
| Product Depth: | 14.21" / 36.09cm |
| Product Weight: | 13.80lbs / 6.26kg |
| TV Size Range: | 40" - 70" / 101.60cm - 177.80cm |
|---|---|
| Maximum TV Weight: | 80lbs / 36.29kg |
| Supported VESA Patterns |
|
| Tilt: | 5° / --15° |
| Roll: | 5° / --5° |
| Swivel: | 45° / --45° |
